Radar Level Transmitter

Overview

The Sensor Separation Type Radar Level Transmitter utilizes non-contact measurement technology based on radar waves. Its design separates the sensor unit from the control unit, ensuring ease of maintenance, enhanced safety, and reliability, even in challenging environments.

Features

Innovative Design

Non-Contact Measurement : Uses microwaves to measure the level of materials with high precision.
Separated Sensor Structure : The sensor and control unit are separated for convenient maintenance and minimal risk.
Adaptability : Suitable for environments with high humidity, vapor, or potential flooding risks.

High-Performance Technology

Accuracy : Provides a high resolution of 1mm and accuracy of ±3mm.
Wide Measurement Range : Supports measurements from 0.5m to 30m.
Durable Construction : Equipped with IP67-rated sensors and wear-resistant coatings.

Ease of Maintenance

Real-time data logging and graphic display support.
On-site maintenance is simplified as the control unit can be independently inspected.

Specifications

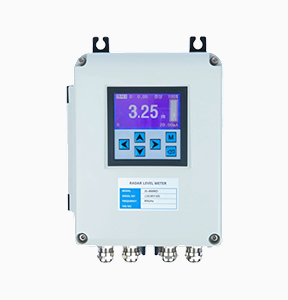

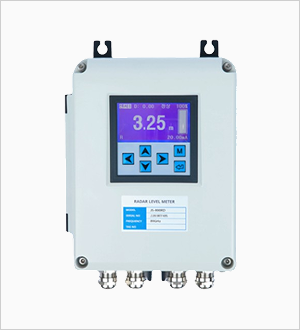

Control Unit Model : ICEM-800RD

Power Supply	100-230V AC ±15%, 50/60Hz
Communication	RS-232 (485)
Display	Menu support, operation status, space distance, mA, %, graphic LCD with backlight
Resolution	1mm
Accuracy	±3mm
Enclosure Class	IP65

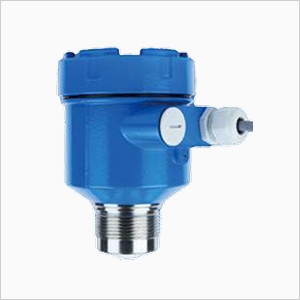

Radar Sensor Model : ICEM-830S

Operating Frequency	76~81GHz
Measurement Range	0.5~30m
Beam Angle	< 8°
Temperature Range	-20°C to 100°C
Application	Liquids and vaporous liquids
Enclosure Class	IP67
