TS80-C Series

Industrial thermal imaging camera (Compact)

Product Information

Compact industrial thermal imaging camera (Measurement)

Alarm output support (1 COMS Relay [Normal Open Dry Contact] output)

Suitable for thermal imaging temperature monitoring in short distances and narrow
spaces with a wide viewing angle (Can be installed in various spaces such as
distribution board, distribution board, ESS, battery pack, communication rack, etc.)

It is durable and suitable for installation in industrial sites.

Wide temperature and spectral ranges allow optimization for a variety of

applications

Easy maintenance and efficient after-sales service

※ Scheduled for release (compact lineup product)

- 80 x 62
FOV : 78° (H) x 53° (V)
- 160 x 120
FOV : 90˚(H) x 66˚(V)
- 240 x 180
FOV : 93.5˚(H) x 70.1˚(V)

POINT

80 x 62 low-pixel thermal imaging camera
Compact type, easy to install in narrow spaces
Wide angle of view (FOV: 90°)
Protocol support for network client development
Temperature detection (Max, Min, Avg)
Alarm operation setting function when maximum temperature is detected
3-phase temperature comparison detection
Point, line, surface (square, polygon) ROI support / 21 ROI areas supported
Up to 8 users simultaneous connection
PoE support
Cheap unit price supply

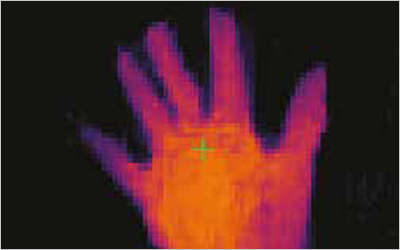

Compact thermal image

80 x 62 (FOV 90°) temperature screen

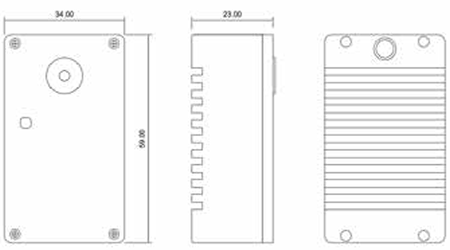

Dimension

Size : 34 x 59 x 23mm

Specification

Title	Industrial thermal imaging cameras
IR sensor	SenXor™
IR Detector Pitch	45(H) × 45(V) µm
Spectral range	LWIR 8 ~ 14 µm
IR Resolution	80(H) × 62(V)
Frame rate	≤3 Hz (FPS)
Lens type	Fixed lens
FOV	None
NETD	≤150 mK
Accuracy	±2.0℃ (0~100℃), ±2.0% (Other temperature range)
Target temp. Range	-20℃ ~ 400℃
Shutter	None
R.O.I	21 zone designation
R.O.I Type	Point, Line, Rectangle, Polygon
Temperature monitoring alarm	3-phase monitoring, over peak temperature
Simultaneous access	8 Session
IP Protection	IP54
Digital I/O	COMS Relay (Normal Open Dry Contact) output 1 ea
Network Interface	Ethernet 100 Mbps
Operation Temp	-10℃ ~ +65℃
Power input	DC 12V / 1A, PoE (48V)
System Interface	Thermal image (SDK, RTSP)
Size	34 × 59 × 23 mm

Thermal Imaging Image
