Fire surveillance thermal imaging camera (PTZ)

Application field

Forest fire monitoring, fire monitoringport vessel surveillance.
Industrial facility equipment monitoring

IP camera security performance quality TTA certified product for public institutions
1/1.8" 4MP CMOS Sensor
Supports 2560 x 1440, 1920 x 1080P/ QHD, FHD resolution
Real-time video transmission at 60 fps based on Full HD
Optical 36x zoom, digital 32x zoom
Supports H.265, H.264, MJPEG codec, OnvifProfile S
Apply fog correction (Defog) optical filter
640 x 512 thermal imaging camera
Dual housing, infrared, wiper, sunshield, pan-tilt integrated structure
FAN, heater (freezing, fogging, freezing, overheating prevention), UV/V diffuse reflection prevention
Outdoor IP66 dust/waterproof rating
Flame resistance, weather resistance, operating temperature certified test report
Aluminum die casting material
360-degree omnidirectional surveillance point setting

Products capable of 360-degree surveillance such as coastal areas / ships / power plants / submission stations / cement factories, etc.

IR sensor	VOx uncooled infrared focal plane detector
IR pixel spacing	12μm
IR wavelength band	8 ~ 14㎛
IR resolution	640 x 512
FOV (angle of view)	17.5° x 14°
NETD	≤35mK
	Thermal lens
Lens	F25mm/F1.0
Zoom	1 x ~ 8 x Digital zoom
Autofocus	Fixed lens
	Real image
Image sensor	1/1.8" CMOS , 4MP
Resolution	2,560 x 1,440, 1920 x 1080
Minimum illumination	Color : 0.001Lux, Black and white : 0.0001Lux Infrared : 0 Lux
Day/night mode	Automatic Manual
	lens
Zoom & lens	36x Optical Zoom(6mm~216mm) 32x Digital Zoom
Angle of view	55.5°(W) ~ 2.13°(T)
Aperture ratio	F1.5 (wide) ~ F4.8 (tele)
Focus	AUTO / MANUAL
Fog correction	Optical filter (Visible Color or SWIR Gray)
HLC	support
Backlight compensation	support
White balance	Manual / Manual / Indoor / Outdoor
Video noise removal	support
Electronic shutter	1/25~1/10,000s
	Video / Audio
Video compression	H.265 / H.264 / MJPEG
Frame rate	60fps
Video streaming	triple streaming
Audio compression	G.711 / G.711U / ADPCM / AAC

Rotation	360° Endless
Rotation	PAN : 0.1°/s ~ 60 TILT : 0.01°/s ~ 30°/s
Angle (Tilt)	(Up)+90° ~ (Down)-90° (TILT output enhancement applied)
Sequence	Preset (255), Tour, Schedule
Wiper	Equipped
Network	Ethernet : 10/100 Base-T, RJ45
Connect	MS connector (cable: specialized structure for side connections on both left and right sides)
communication protocol	TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTSP, RTP, SDP, HTTP, HTTPS, FTP, SMTP, DHCP, uPNP, NTP, DNS, DDNS
ONVIF	support
Audio input/output	1 input, 1 output
Alarm input/output	1 input, 1 output
External storage	Micro SD slot
Operating temperature	-35℃~60℃
Input power	AC24V 3A
Power Consumption	Up to 75W
Certification	TTA, KC, IP66

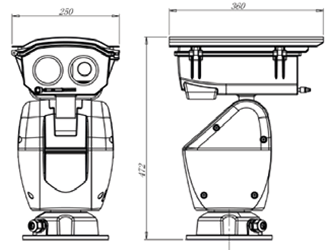

External dimensions	250(W) x 360(D) x 472(H)mm
Weight	About 22 kg
Texture	Aluminum
Certified test report	Flame resistance, weather resistance, operating temperature certified test report
