Thermal Imaging Camera (13)

Thermal imaging surveillance camera (PTZ)

Application field

Intrusion surveillance, military/marine border surveillance
Forest fire monitoring, port vessel monitoring
Industrial facility equipment monitoring

100% gear-type rotation mechanism structure, suitable for environments with severe vibration
Built-in Intelligent Encoder optimized for AI video surveillance, equipped with a high-end step motor
Special powder coating optimized for dust explosion-proof areas such as coastal areas/ships/power plants/substations/cement factories
Optimized for use in coastal areas/ships by adopting special coating for corrosion resistance/salt resistance/chemical resistance
2 Megapixel, 1/2" Sony ultra-low-light CMOS Sensor
Optical 36x zoom (6~216mm) & digital 32x zoom
IP67 dust and water resistance rating
Pan/Tilt rotation angle: 360° infinite rotation / 180°
Pan/Tilt rotation speed: 0.025~120°/Sec (wiper/fan/heater mounted)
Manual rotation speed can be continuously adjusted from 0 to 60 degrees per second.
Horizontal scanning between two points - editable patrol track, track self-learning function

Military area, barbed wire security, omnidirectional surveillance 360-degree surveillance product

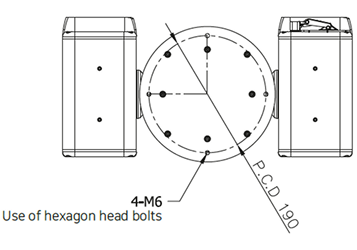

Due to the actual product size and additional mount installation, Installation height can be changed

Item	VD640-P Series
Title	Thermal imaging camera for surveillance(Observation)
IR sensor	VOx uncooled infrared focal plane detector
IR Detector Pitch	17 ㎛
IR Resolution	640 (H) x 480 (V)
Frame rate	max ≤30 Hz
Lens type	F25mm / F1.0
FOV	25˚ (H) x 18.7˚ (V)
NETD	≤30mK
Video transmission method	H.264
Shutter	electric shutter
Simultaneous access	8 Session
Network Interface	Ethernet 100Mbps
	Real image
Resolution	2 MegaPixel
lens	8 Session
Angle of view	D : 63.3˚(W) ~2.4˚(T) / H : 56.5˚(W) ~ 2.1˚(T) / V : 33.6˚(W) ~ 1.1˚(T)
Zoom scale	Optical 36x zoom / Digital 32x zoom
Video Compression	H.264
Onvif	support
Frame	30FPS
	PTZ
Texture	Aluminum Die-casting / SUS316L
IP protection	IP67
Tilt rotation angle	180˚
Pen rotation angle	360˚ infinite rotation
Pan/tilt rotation speed	Up to 0.025 ~ 120˚/Sec
Operating temperature	-25℃ ~ +55℃
PRESET	256
Tour/Group/Swing	8 each
	Specifications
Power Input	DC 24V
Power Consumption	100W
Wiper	mounted

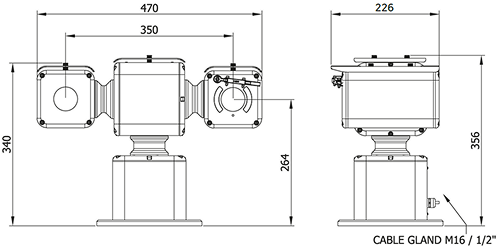

Size	470(W) x 356(H) x 226(L) mm
Weight	About 17 kg
