VD256 / 384-B Series

Thermal imaging surveillance camera single (bullet)

Product Information

Fixed thermal imaging dual camera for surveillance (Observation)

Vanadium oxide (VOx) microbolometer focal plane array IR detectors cover
wavelengths from 8 to 14 μm.
Supports various thermal image resolutions 256 x 192, 384 x 288
Supports various angles of view (FoV)

- 256 x 192
90.6°(H) x 65.4°(V)
50°(H) x 38°(V)
29.8°(H) x 22.3°(V)
- 384 x 288
41.6°(H) x 31.2°(V)
28.8°(H) x 21.6°(V)
20.8°(H) x 15.6°(V)
15°(H) x 11.2°(V)
Real image
1920(H) x 1080(V) FHD, 30FPS supported (resolution and frame adjustable)

Supports wide visual angle of view of 101˚(H) x 57˚(V)
Supports digital input/output (TTL 1port input, DO 1port output)
Applicable to various fields such as access monitoring and industrial site facility
monitoring through short-distance monitoring.
Easy monitoring with the included thermal imaging CMS program.
Supports various palette color modes to aid observation.
IP66 rated housing

POINT

Thermal image + visual image dual camera (bullet type)
Protocol support for network client development
Thermal imaging SDK, RTSP support / option: Onvif
Real image RTP, RTSP support / Option: Onvif
Supports various thermal image resolutions
23 palettes provided
Point, line, surface (square, polygon) ROI support / 21 ROI areas supported
Up to 8 users simultaneous connection
Built-in image sensor specialized for low light
PoE support
Reasonable supply price

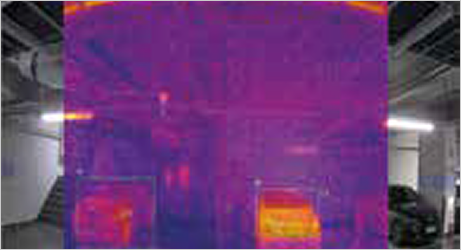

Real image + thermal image mode

Simultaneous monitoring of visual and thermal images in blende
mode Supports various modes (visual image, thermal image, half, etc.)

Dimension

Size : 257.3 x 62 x 62mm

Specification

Item	VD256-B Series	VD384-B Series
Title	thermal imaging surveillance camera (Observation)
IR sensor	Uncooled VOx
IR Detector Pitch	12㎛	17㎛
Spectral range	LWIR 8 ~14㎛
IR Resolution	256(H) x 192(V)	384 (H) x 288 (V)
Frame rate	≤25 Hz	≤50 Hz
Lens type	Fixed lens
FOV	29.8°(H) x 22.3°(V) 50°(H) × 38°(V)	41.6°(H) x 31.2°(V) 28.8°(H) x 21.6°(V)
Option FOV	90.6°(H) x 65.4°(V)	20.8°(H) x 15.6°(V) 15°(H) x 11.2°(V)
Spatial resolution	2mrad / 3.75mrad	1.8mrad / 1.3mrad
NETD	≤50mK	≤40mK
Shutter	electric shutter
	Real image
Sensor	1/2.8inch CMOS
Resolution	1920(H) x 1080(V)
Frame rate	30fps
FOV	101˚(H) x 57˚(V)
Video Compression	H.264, JPEG
	Specifications
Simultaneous access	8 Session
IP protection	IP66
Digital I/O	1 sensor (TTL level) input, 1 Relay (NC/NO Dry Contact) output
User interface	RS232c
Network Interface	Ethernet 100Mbps
Operation Temp	-15℃~ +50℃	-40℃~ +60℃
Power input	DC 12V / 3A, PoE (48V)
System Interface	Supports thermal imaging (SDK) and visual imaging (RTSP, Onvif)
Size	257.3 x 62 x 62mm

Thermal imaging image
