Thermal Imaging Camera (13)

TS160 / 240 / 256 / 640-B Series

Thermal imaging camera single (Bullet)

Product Information

Fixed industrial thermal imaging dual camera (Measurement)

Supports thermal image resolution 160 × 120, 240 × 180
Support for different angles of view (FoV)

- 160 x 120
91.7˚(H) x 68.8˚(V)
59.5˚(H) x 44.7˚(V)
38.2˚(H) x 28.7˚(V)
- 240 x 180
93.5˚(H) x 70.1˚(V)
60.7˚(H) x 45.6˚(V)
39.0˚(H) x 29.2˚(V)
23.4˚(H) x 17.5˚(V)
- 256 x 192
90.6°(H) x 65.4°(V)
50°(H) x 38°(V)
29.8°(H) x 22.3°(V)
- 640 x 512
46.2°(H) x 37.7°(V)
32.9°(H) x 26.6°(V)
17.5°(H) x 14°(V)
12.5°(H) x 10°(V)

Digital I/O support (TTL 1port input, DO 1port output)
Professional temperature measurement function / Polygon setting for high and low.
temperature measurements to set accurate area and measure.
Easy monitoring with the accompanying thermal CMS program.
Support for different pallet color modes for observation.
Housing rated IP66.

POINT

Thermal imaging camera (bullet type)
Protocol support for network client development
Thermal imaging SDK, RTSP support
Temperature detection (Max, Min, Avg)
Function to set alarm operation when maximum temperature is detected
3-phase temperature comparison detection
Point, line, face (square, polygon) ROI support / 21 ROI areas support
Up to 8 users concurrent connections
PoE support
Reasonable supply price

Installation

Outdoor thermal imaging camera capable of outdoor
construction Fire monitoring.(temperature measurement and
analysis)

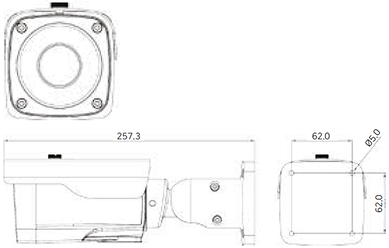

Dimension

Size : 257.3 x 62 x 62mm

Specification

Item	TS160-B Series	TS240-B Series	TS256-B Series	TS640-B Series
Title	Industrial thermal imaging cameras
IR sensor	Uncooled IRFPA Microbolometer		Uncooled VOx
IR Detector Pitch	25μm	17μm	12μm
Spectral range	LWIR 8 ~ 14μm
IR Resolution	160 (H) x 120 (V)	240 (H) x 180 (V)	256 (H) x 192 (V)	640(H) x 512(V)
Frame rate	≤15 Hz	≤9 Hz	≤25 Hz
Lens type	Fixed lens
FOV	91.7˚x 68.8˚	93.5˚x 70.1˚ 60.7˚x 45.6˚	29.8° × 22.3° 50˚x 38˚	17.5˚x 14˚
Option FOV	59.5˚x 44.7˚ 38.2˚x 28.7˚	39.0˚x 29.2˚ 23.4˚x 17.5˚	90.6˚x 65.4˚	46.2˚x 37.7˚ 32.9˚x 26.6˚
NETD	≤60mK		≤50mK	≤35 Hz
Accuracy	±2.0℃(0~100℃) ±2.0% (Other temperature areas)		±2.0℃ or ±2.0%
Taget temp Range	0℃ ~ 250℃		-20℃ ~ +150℃ +20℃ ~ +550℃	-20℃ ~ +150℃ +100℃ ~ +550℃
Shutter	electric shutter
R.O.I	21 zone designation
R.O.I Type	Point, Line, Rectangle, Polygon
Temperature monitoring alarm	3-phase monitoring, over peak temperature
	specifications
Simultaneous access	8 Session
IP protection	IP66
Digital I/O	1 Sensor (TTL level) input and 1 relay (NC/NO Dry Contact) output
User interface	RS232c
Network Interface	Ethernet 100Mbps
Operation Temp	-10℃ ~ +55℃		-15℃ ~ +55℃	-20℃∼+60
Power input	DC 12V / 3A, PoE (48V)
System Interface	Thermal image (SDK, RTSP)
Size	257.3 x 62 x 62mm

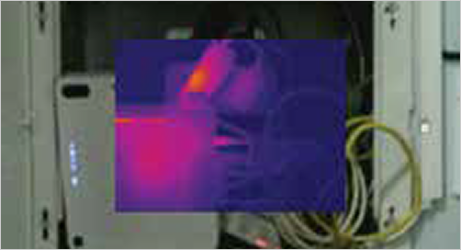

Thermal imaging image Industrial site inspection and maintenance
