Thermal Imaging Camera (13)

TD160 / 256-2Q Series

Thermal imaging camera dual (2nd generation cube)

Product Information

2nd Generation
Fixed Industrial Thermal Image Dual Camera (Measurement)

Thermal image resolution 160 x 120, 256 x 192
Support for different angles of view (FoV)

- 160 x 120
57.1˚(H) x 44.4˚(V)
38.9˚(H) x 29.7˚(V)
25.5˚(H) x 19.3˚(V)
- 256 x 192
90.6˚(H) x 65.4˚(V)
50˚(H) x 38˚(V)
29.8˚(H) x 22.3˚(V)
True Story
1920(H) x 1080(V) FHD, 30FPS support (resolution and frame adjustable)

Supports wide range of true-fire viewing angles 101˚(H) x 57˚(V)
Digital input/output support (TTL 1port input, DO 1port output)
Supports multiple interfaces (SDK, RTP, RTSP, Onvif)
Durable and suitable for industrial site installation
Different temperature and spectrum ranges allow for optimization for different
applications Support for different operating modes (IR, EO, Half, PIP, Blend)

POINT

Thermal + True Story Dual Camera (2nd Generation Cube)
Protocol support for network client development
Supports thermal image SDK, RTSP / real image RTP, RTSP
Temperature detection (Max, Min, Avg)
Function to set alarm operation when maximum temperature is detected
3-phase temperature comparison detection
Point, line, face (square, polygon) ROI support / 21 ROI areas support
Up to 8 users concurrent connections
Built-in low-light specialized image sensor
PoE support
Reasonable supply price

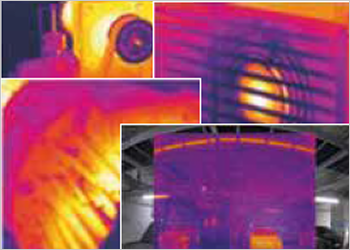

Dual surveillance mode (thermal
image + real image)

Support Mode : Blend, IR, EO, Half, PIP

Dimension

Size : 65 x 90 x 30mm

Specification

Item	TD160-2Q Series	TD256-2Q Series
Title	2nd Generation Industrial Thermal Imaging Camera
IR sensor	Uncooled infrared focal plane	Uncooled VOx
IR Detector Pitch	17㎛	12㎛
Spectral range	LWIR 8 ~14㎛
IR Resolution	160 (H) x 120 (V)	256 (H) x 192 (V)
Frame rate	≤25 Hz
Lens type	Fixed lens
FOV	57.1˚(H) x 44.4˚(V)	90.6˚(H) x 65.4˚(V)
Option FOV	38.9˚(H) x 29.7˚(V) 25.5˚(H) x 19.3˚(V)	50˚(H) x 38˚(V) 29.8˚(H) x 22.3˚(V)
NETD	≤60mK	≤50mK
Accuracy	±2.0℃ or ±2.0%
Target temp Range	-10℃ ~ 300℃	-20℃ ~ 150℃ ; 20℃ ~ 550℃
Shutter	electric shutter
R.O.I	21 zone designation
R.O.I Type	Point, Line, Rectangle, Polygon
Temperature monitoring alarm	3-phase monitoring, over peak temperature
	Real image
Sensor	1/2.8inch CMOS
Resolution	1920(H) x 1080(V)
Frame rate	30fps
FOV	101˚(H) x 57˚(V)
Video Compression	H.264, JPEG
	specifications
Simultaneous access	8 Session
IP protection	IP66
Digital I/O	1 Sensor (TTL Level) input 1 Relay (NC/NO Dry Contact) output
User interface	RS232c
Network interface	Ethernet 100Mbps
Operation Temp	-15℃ ~ +55℃
Power input	DC 12V / 3A, PoE (48V)
System Interface	Thermal image (SDK, RTSP) True Story (RTSP, Onvif)
Size	65 x 90 x 30mm
