TD160 / 240-Q Series

Thermal imaging camera dual (Cube)

Product Information

Fixed industrial thermal imaging dual camera (Measurement)

Supports thermal image resolution 160 × 120, 240 × 180
Support for different angles of view (FoV)

- 160 x 120
91.7˚(H) x 68.8˚(V)
59.5˚(H) x 44.7˚(V)
38.2˚(H) x 28.7˚(V)
- 240 x 180
93.5˚(H) x 70.1˚(V)
60.7˚(H) x 45.6˚(V)
39.0˚(H) x 29.2˚(V)
23.4˚(H) x 17.5˚(V)
True Story
1920(H) x 1080(V) FHD, 30FPS support (resolution and frame adjustable)

Supports wide range of true-fire viewing angles 101˚(H) x 57˚(V)
Digital input/output support (TTL 1port input, DO 1port output)
Supports multiple interfaces (SDK, RTP, RTSP, Onvif)
Durable and suitable for industrial site installation.
Different temperature and spectrum ranges allow for optimization for different
applications Support for various operating modes (IR, EO, Hal)f, PIP, Blend)
Compact housing rated IP66

POINT

Thermal + True Story Dual Camera (Cube type)
Protocol support for network client development
Supports thermal image SDK, RTSP / real image RTP, RTSP
Temperature detection (Max, Min, Avg)
Function to set alarm operation when maximum temperature is detected
3-phase temperature comparison detection
Point, line, face (square, polygon) ROI support / 21 ROI areas support
Up to 8 users concurrent connections
Built-in low-light specialized image sensor
PoE support
Reasonable supply price

Dual surveillance mode (thermal
image + real image)

Support Mode : Blend, IR, EO, Half, PIP

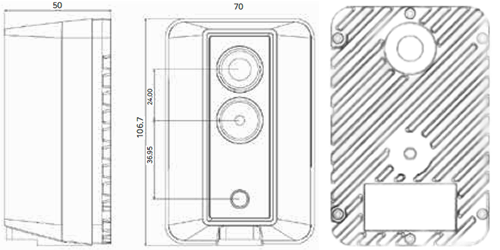

Dimension

Size : 70 x 106.7 x 50mm

Specification

Item	TD160-Q Series	TD240-Q Series
Title	Industrial thermal imaging cameras
IR sensor	Uncooled IRFPA Microbolometer
IR Detector Pitch	25㎛	17μm
Spectral range	LWIR 8 ~ 14μm
IR Resolution	160 (H) x 120 (V)	240 (H) x 180 (V)
Frame rate	≤15 Hz	≤9 Hz
Lens type	Fixed lens
FOV	91.7˚(H) x 68.8˚(V)	93.5˚(H) x 70.1˚(V) 60.7˚(H) x 45.6˚(V)
Option FOV	59.5˚(H) x 44.7˚(V) 38.2˚(H) x 28.7˚(V)	39.0˚(H) x 29.2˚(V) 23.4˚(H) x 17.5˚(V)
Spatial resolution	10mrad	6.8mrad / 4.4mrad
NETD	≤60mK
Accuracy	±2.0℃(0~100℃) ±2.0% (Other temperature range)
Target temp Range	0℃ ~ 250℃
Shutter	electric shutter
R.O.I	21 zone designation
R.O.I Type	Point, Line, Rectangle, Polygon
Temperature monitoring alarm	3-phase monitoring, over peak temperature
	Real image
Sensor	1/2.8inch CMOS
Resolution	1920(H) x 1080(V)
Frame rate	30fps
FOV	101˚(H) x 57˚(V)
Video Compression	H.264, JPEG
	specifications
Simultaneous access	8 Session
IP protection	IP66
Digital I/O	1 Sensor (TTL Level) input 1 Relay (NO/NC Dry Contact) output
User interface	RS232c
Network interface	Ethernet 100Mbps
Operation Temp	-10℃ ~ +55℃
Power input	DC 12V / 3A, PoE (48V)
System Interface	Thermal image (SDK, RTSP)
Size	70 x 106.7 x 50mm
