TS160 / 240-Q Series

Thermal imaging camera single (Cube)

Product Information

Stationary industrial thermal imaging camera (Measurement)

Supports various thermal image resolutions 160 × 120, 240 × 180
Supports various angles of view (FoV)

- 160 x 120
91.7˚(H) x 68.8˚(V)
59.5˚(H) x 44.7˚(V)
38.2˚(H) x 28.7˚(V)
- 240 x 180
93.5˚(H) x 70.1˚(V)
60.7˚(H) x 45.6˚(V)
39.0˚(H) x 29.2˚(V)
23.4˚(H) x 17.5˚(V)

Supports digital input/output (TTL1port input, DO 1port output)
Professional temperature measurement function / Possible to measure by setting an
accurate area with polygon settings for high and low temperature measurement.

Easy monitoring with the included thermal imaging CMS program.
It is durable and suitable for installation in industrial sites.
Wide temperature and spectral ranges allow optimization for a variety of
applications. Compact housing with IP66 rating

POINT

Thermal imaging camera (cube type)
Protocol support for network client development
Thermal imaging SDK, RTSP support
Temperature detection (Max, Min, Avg)
Alarm operation setting function when maximum temperature is detected
3-phase temperature comparison detection
Point, line, surface (square, polygon) ROI support / 21 ROI areas supported
Up to 8 users simultaneous connection
PoE support
Reasonable supply price

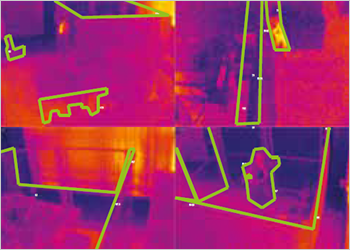

Thermal image

polygon setting temperature detection

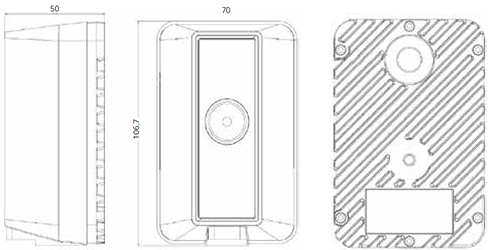

Dimension

Size : 70 x 106.7 x 50mm

Specification

Item	TS160-Q Series	TS240-Q Series
Title	Industrial thermal imaging cameras
IR sensor	Uncooled IRFPA Microbolometer
IR Detector Pitch	25㎛	17㎛
Spectral range	LWIR 8 ~ 14㎛
IR Resolution	160 (H) x 120 (V)	240 (H) x 180 (V)
Frame rate	≤15 Hz	≤9 Hz
Lens type	Fixed lens
FOV	91.7˚(H) x 68.8˚(V)	93.5˚(H) x 70.1˚(V) 60.7˚(H) x 45.6˚(V)
Option FOV	59.5˚(H) x 44.7˚(V) 38.2˚(H) x 28.7˚(V)	39.0˚(H) x 29.2˚(V) 23.4˚(H) x 17.5˚(V)
Spatial resolution	10mrad	6.8mrad / 4.4mrad
NETD	≤60mK
Accuracy	±2.0°C(0~100°C) ±2.0% (Other temperature range)
Taget temp Range	0℃ ~ 250℃
Shutter	electric shutter
R.O.I	21 zone designation
R.O.I Type	Point, Line, Rectangle, Polygon
Temperature monitoring alarm	3-phase monitoring, over peak temperature
Simultaneous access	8 Session
IP protection	IP66
Digital I/O	1 Sensor (TTL Level) input 1 Relay (NO/NC Dry Contact) output
User interface	RS232c
Network interface	Ethernet 100Mbps
Operation Temp.	-10℃ ~ +55℃
Power input	DC 12V / 3A, PoE (48V)
System Interface	Thermal image (SDK, RTSP)
Size	70 x 106.7 x 50mm

Thermal Imaging Image
